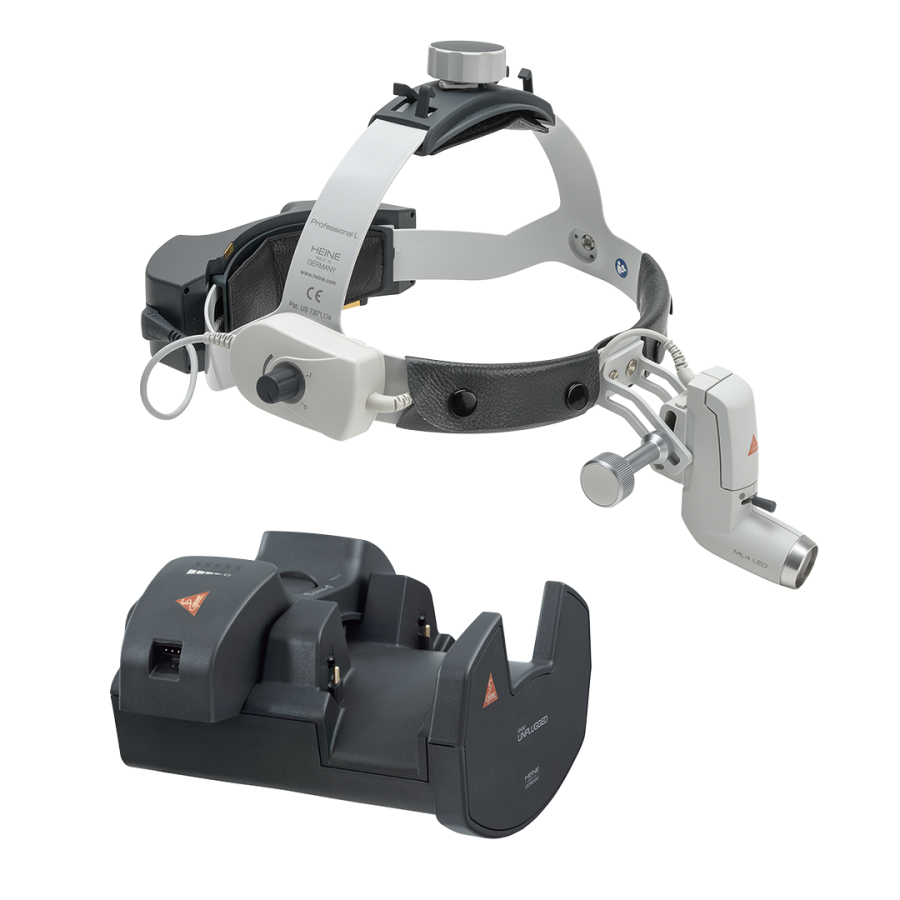

HEINE ML4 LED HeadLight with Professional L Headband, EN 50 UNPLUGGED Wall Charger & 2x mPack UNPLUG
HEINE ML4 LED HeadLight with Professional L Headband, EN 50 UNPLUGGED Wall Charger and 2x mPack UNPLUGGED

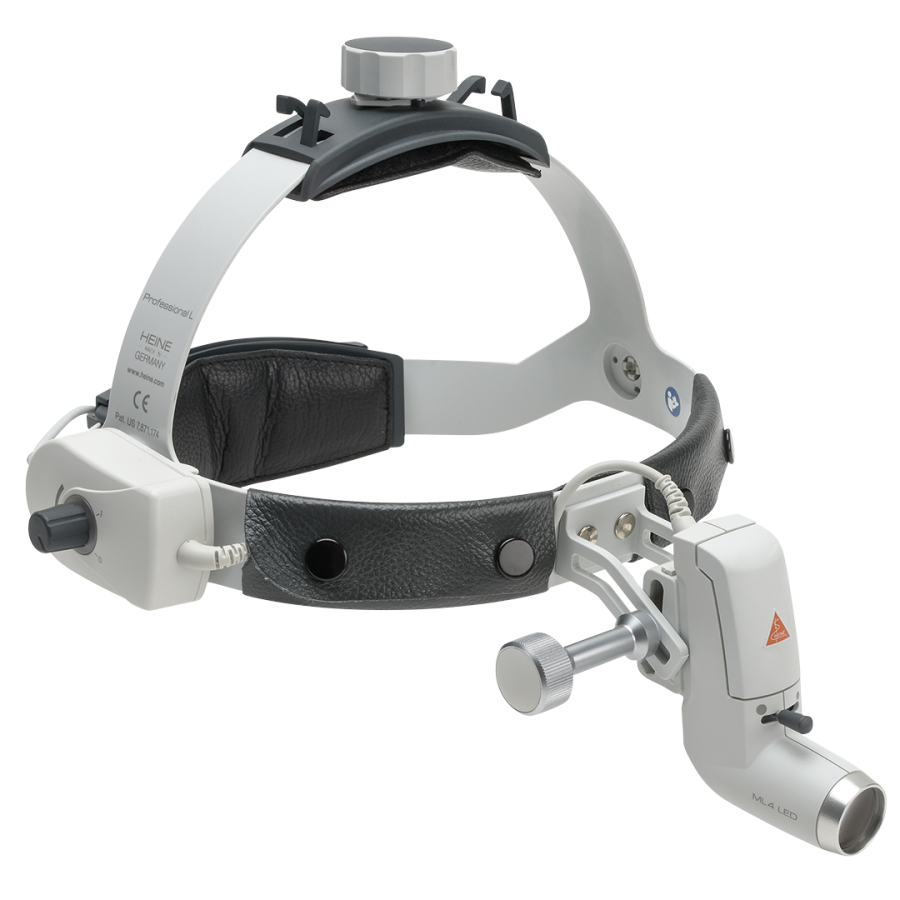

The HEINE ML4 LED HeadLight with Professional L Headband, EN 50 UNPLUGGED wall charger and two mPack UNPLUGGED batteries provides maximum mobility and continuous performance for extended examinations and surgical procedures. LEDHQ technology delivers outstanding illumination and reliable clinical performance.
Intended Use
The internally powered headlight is intended for temporary illumination of the body, excluding the eyes, to support diagnostic, therapeutic and surgical procedures. It is intended exclusively for use by qualified healthcare professionals.
HEINE LEDHQ Technology
HEINE LEDHQ technology delivers superior illumination, excellent colour rendering and exceptional energy efficiency. The result is a bright, homogeneous light field that supports accurate diagnosis and treatment.
Key Features
- Adjustable spot size from 30 mm to 80 mm at a 420 mm working distance.
- Bright, homogeneous illumination across the entire field of view.
- Stepless brightness adjustment.
- Coaxial illumination for a completely shadow-free view.
- Professional L Headband with multiple adjustment points and soft padding.
- Suitable for prolonged examinations and surgical procedures.
- Optional P2 polarisation filter and yellow filter available.

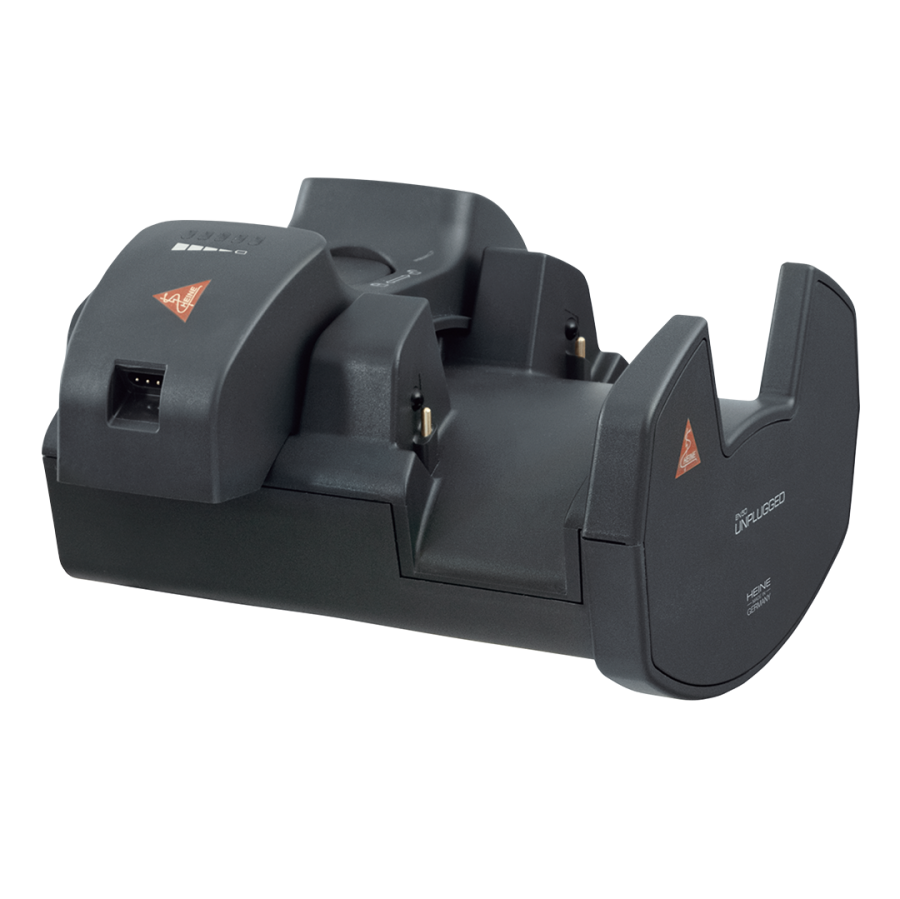

EN 50 UNPLUGGED Wall Charger
The EN 50 UNPLUGGED combines a wall-mounted holder and charging station in one convenient solution, ensuring the headlight is always ready for use.
- Wall holder and charger in one unit.
- Automatic charging mode activation.
- Overcharge protection.
- Simultaneous charging of the primary and spare battery.
- 100-240V multivoltage power supply with international plug adapters.

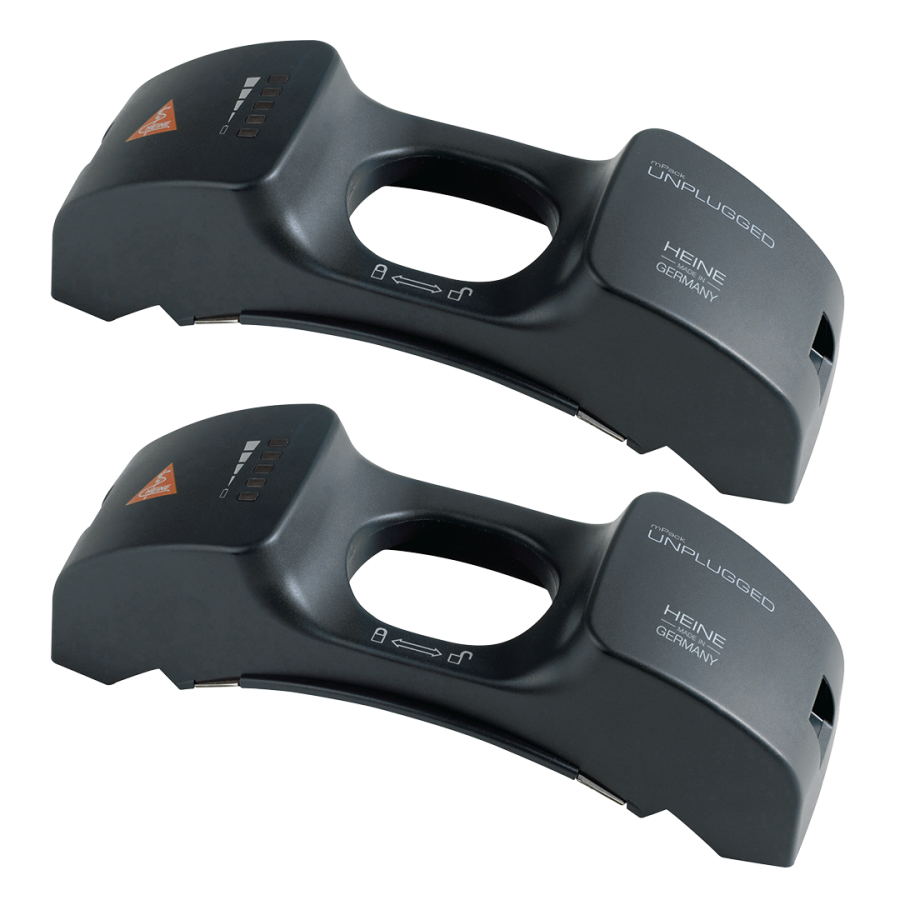

2x mPack UNPLUGGED Battery System
The two included mPack UNPLUGGED batteries provide complete freedom of movement and extended operating time.
- Lightweight lithium-polymer battery technology.
- Battery status indicator showing remaining operating time.
- Rechargeable via wall charger or plug-in transformer.
- Charging time approximately 2 hours.
- Operating time approximately 3.5 hours per battery.
- Intelligent charging system with automatic switching.
- Integrated safety and performance monitoring.
Technical Specifications
| Article Number | J-008.31.416 |
| Model | ML4 LED |
| Illumination | ± 90,000 lux |
| Colour Temperature | ± 5,500 K |
| LED Lifetime | ± 50,000 hours |
| Spot Size | 30 mm - 80 mm at 420 mm working distance |
| Declination Angle | Continuously adjustable |
| Rheostat | Integrated into the headband |
| Operating Time | ± 3.5 hours per battery |
| Charging Time | ± 2 hours |
